China Factory Filter Bag High Flow Filter Cartridge Size 1 and Size 2 Bag Filter
General Description

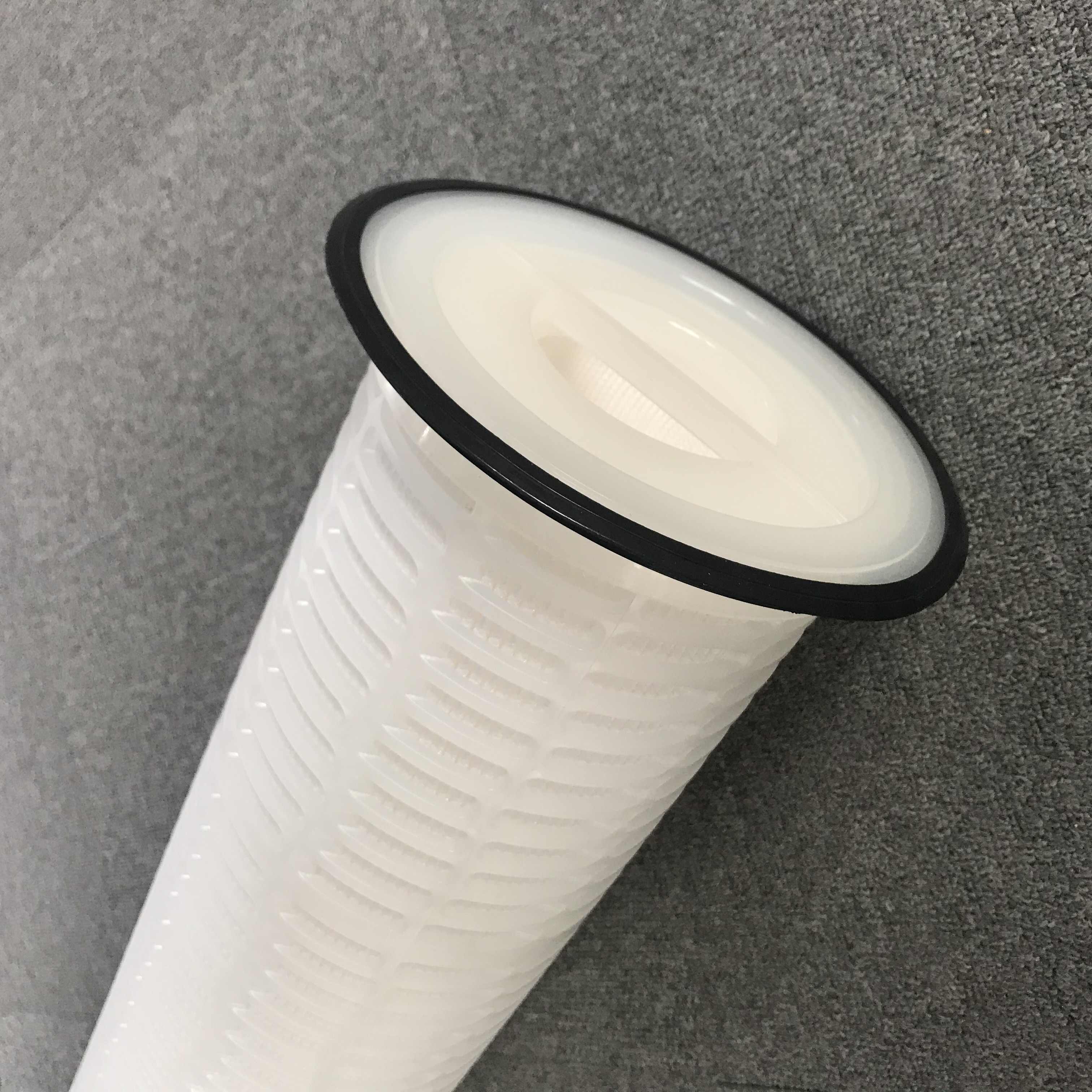

PHBG series Bag Filter pp pleated filter cartridge is designed to replace bag filters No.1 and No.2 size. PP pleated type provide bigger filtration area, high filtrtaion efficiency.
Bag Filter Application:
General Purpose: RO Pre-filtration, all kinds process water purification
Industrial filtration: Process fluid, process water, condensed water, coolant, wastewater treatment;
Food and Beverage: Process water;
Petrochemical: Various solvents, chilled water, brine filtration
Power Plant: supplementary water, condensate water, coolant
Bag Filter Features
* Inside to outside flow direction keeps all of the contamination catched;
* Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers save the labor cost;
* Integral support, high strength, high dirt holding capacity, long service life;
Performance Specifications
Bag Filter Dimensions(nominal)
| OD | 6" (152.4mm) |
| Port size | 180mm |
| Length | 10”, 20”, 30”, 40” (Customized on request) |
Bag Filter Material of Construction
| Model | Filter Media | Support/Drainage | End Caps | Seals Material |
| PP | Pleated Depth Polypropylene | Polypropylene | Glass Fiber Reinforced Polypropylene | NBR,Silicone, EPDM,Viton |
| GF | Glass Fiber/Polyester | Polyester | Glass Fiber Reinforced Polypropylene | NBR,Silicone, EPDM,Viton |
Bag Filter Performance
| Micron | 1m, 5μm, 10μm, 20μm, 50μm, 100μm, 150μm, 200μm |
| Max. operating temperature | Pleated PP: 82℃ Pleated glass fiber: 121℃ |
| Max. operating differential pressure (Inside to outside flow direction) | Pleated pp: 3.44bar@82℃ Pleated glass fiber: 3.44bar@121℃ |
| Suggestion pressure for filter replacement | 2.5 Bar @ 20℃ |
Bag Filter Details
Bag Filter Operating Demonstration
It easy to operating, all you need to do just to put the new bag filter in the filter housing.
Bag Filter Production process:
Our production strictly follow these procedures: Pleating → Seam welding → Assembly → Trimming → Welding → Finished products → Packaging
Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.
Bag Filter is produced in Clean Room:
In the purification workshop, workers need to wear purification clothes, purification shoes, masks, hats and gloves. The purification workshop has high requirements on the production environment, which can ensure the cleanliness and safety of the products, and can meet the filtration requirements of food and beverage, biopharmaceutical and other industries.
Pullner laboratory:
It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.
Pullner Certificates:
Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
Global Customers
Pullner Exhibitions:
We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.
Bag Filter Packaging & Shipping:
Standard packaging: individual carton packing after poly bag, then 4pcs per carton, Pallets packaging and Container for shipping. Customized packaging according to customers request.
Shipping by sea or air, or couriers like TNT, FedEx, DHL, UPS, Aramex, etc.
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 5-7 working days for off-the-shelf samples and 10~15 days for bulk production.
8. Q: How should I pay you?
A: T/T, L/C, Western Union, MoneyGram, etc are acceptable.
9. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14001/ISO45001 certified.
10. Q: How should I place an order?
A: Please kindly click "Sent Inquiry", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
