High Flow Filter Cartridge,Large flow rate per cartridge
Large flow rate per cartridge,Low installation costs and low operating costs.The number of filter element replacements is small.High-quality special FDA filter materials,single end opening, no center support skeleton,inside to outside flow direction.The polyprolene deep filter media with gradual aperture becomes smaller along the direction of fluid movement,and the paticles of different sizes are intercepted in different layers.The U-shaped sealing groove ensures high filtration efficiency.
Material Construction
| Filter Media | PP:Deep Pleated PP/ Melt PP | FO:Organic Fiber | GF:Glass Fiber/Polyester |
| Support/Drainage | PP | Organic Fiber | Polyester |
| End Cap Material | Fiberglass reinforced polypropylene | Fiberglass reinforced polypropylene | Fiberglass reinforced polypropylene |
Performance
| Maximum Operation Temperatue | PP:82°C FO:120℃ GF:121℃ |
| Maximum Operation Differential Pressure |
PP:3.44bar / 21°C
FO:3.44bar / 120°C GF:3.44bar / 121°C |
Flow Rate and Filtration Area
| Size (Diameter*Length) | Design Flow (m3/hr) | Maximum Flow (m3/hr) | Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
* General purpose: RO Prefiltration,all kinds process water purifi-cation;
* Industrial purpose: Process fluid,process water,condensed water,collant,wastewater treatment；
* Food and Beverage: Process water;
* Power Plant: Iron removal filters element,condensate filter element.stator cooling water.etc;
* Petrochemical: Various solvents,chilled water,brine filtration.
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
|
|

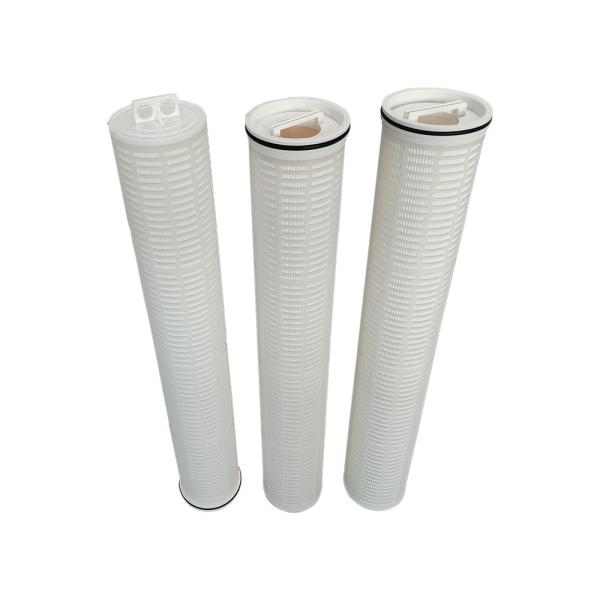

High Flow Filter Cartridge for Petrochemical and power plant condensation, high filtration efficiency. Images
|
